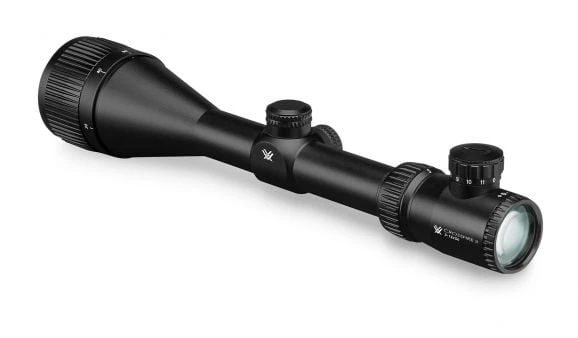

Vortex Crosfire II 3-12X56 AO V-Brite (MOA) Reticle

Our mission-specific Crossfire II Hog Hunter riflescope
excels when hunting in the lowest light, from early evening to the first
glimmer of dawn. Thanks to fully multi-coated optics with anti-reflective
coatings, a 30 mm tube and over-sized 56 mm objective lens, hard-core hog
hunters can now place shots in heavy cover with the utmost confidence when
light conditions are at their worst. The hard anodized single-piece
aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for
waterproof and fogproof performance. With versatile 3-12x magnification and a
rugged build to withstand hard use, the Hog Hunter is one tough customer.



UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED



Crossfire II 3-12×56 AO Dimensions (in inches)



Lengths
L1	L2	L3	L4	L5	L6
14.3	1.9	2.6	5.0	4.8	3.6



Heights
H1	H2
2.71	1.73

Dual use for Shooting Tactical / Hunting

Included in the Box

• 4-inch
  sunshade

• Removable
  lens covers

• Lens
  cloth

Magnification 3-12x

Objective Lens Diameter 56 mm

Eye Relief 3.5 inches

Field of View 36.7-9.2 ft/100 yds

Tube Size 30 mm

Turret Style Capped

Adjustment Graduation 1/4 MOA

Travel Per Rotation 15 MOA

Max Elevation Adjustment 60 MOA

Max Windage Adjustment 60 MOA

Parallax Setting 10 yards to infinity

Length 14.3 inches

Weight 21.1 oz

Product Manual (PDF) Download



OPTICAL FEATURES

Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

Illuminated Center Dot Daylight bright illuminated center
dot provides a precise point-of-aim in all lighting conditions.



CONSTRUCTION FEATURES

Tube Size 1 inch diameter tube offers a versatile blend of
adjustment, size and weight for a wide variety of shooting applications.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Nitrogen gas purging prevents internal fogging over
a wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

Capped Reset Turrets Allow quick re-indexing of the turret
(no tool needed) to zero after sighting in the riflescope. Caps provide
external protection for turret.

Adjustable Objective Adjustment for riflescope’s objective
lens provides image focus and parallax removal.



CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.



RETICLE





V-BRITE ILLUMINATED RETICLE (MOA)

Uses the V-Plex format along with battery-powered
electronics to illuminate the center dot for better low-light performance. Good
for hunters/shooters during extra-low light conditions.

Subtension detail for Crossfire II 3-12×56 AO Hog Hunter
riflescope with V-Brite illuminated reticle.
