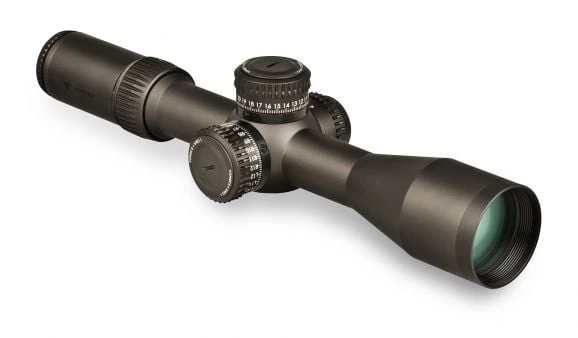

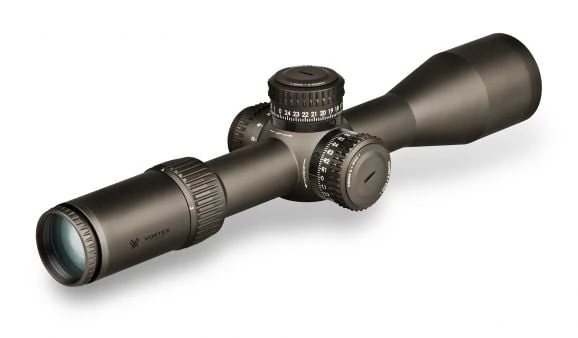

Vortex Razor HD GEN II 3-18X50 FFP EBR-7C (MRAD) Reticle

The clear choice for hardcore precision, tactical and
competition shooters looking for the optimal combination of features and
optical quality. The Razor HD Gen II provides long-range shooters the advanced
features needed to perform at the highest level, including locking turrets, the
integrated L-Tec zero stop and a first focal plane reticle for when shots need
to be taken quickly from any magnification.



UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED



Razor HD Gen II 3-18×50-EBR-7C (MRAD) Dimensions (in
inches)



Lengths
L1	L2	L3	L4	L5	L6
14.4	2.0	2.2	6.1	4.1	4.1



Heights
H1	H2
2.32	1.81

Dual use for Shooting Tactical / Hunting • US Patent
7,958,665

Included in the Box

• 4-inch
  sunshade

• 2mm
  hex wrench

• CR2032
  battery

• Lens
  cloth

Magnification 3-18x

Objective Lens Diameter 50 mm

Eye Relief 3.7 inches

Field of View 37.8-6.25 ft/100 yds

Tube Size 34 mm

Turret Style L-Tec

Adjustment Graduation .1 MRAD

Travel Per Rotation 10 MRAD

Max Elevation Adjustment 28.5 MRAD

Max Windage Adjustment 10 MRAD

Parallax Setting 25 yards to infinity

Length 14.4 inches

Weight 46.5 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download



OPTICAL FEATURES

APO System Index-matched lenses correct color across the
entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and
brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass delivers
the ultimate in resolution and color fidelity, resulting in high-definition
images.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective
coatings on all air-to-glass surfaces provide maximum light transmission for
peak clarity and the pinnacle of low-light performance.

Plasma Tech Cutting edge coating application process
provides unparalleled coating durability and performance

First Focal Plane Reticle Scale of reticle remains in
proportion to the zoomed image. Constant subtensions allow accurate holdover
and ranging at all magnifications.

Glass-Etched Reticle Allows for intricate reticle design.
Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle Provides precise aiming under low-light
conditions



CONSTRUCTION FEATURES

Tube Size 34 mm diameter provides maximized internal
adjustment and strength.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Stealth Shadow Finish Highly durable hard-coat
anodization provides a low-glare matte surface and helps camouflage the
shooter’s position.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

L-Tec™ Turrets Integrated locking mechanism prevents
accidental adjustments. Turrets provide fast, accurate, easily read elevation
and windage adjustments. Patent pending.

External Rotation Indicator Provides quick visual and
tactile reference of elevation turret’s rotational position.

Locking Illumination Locks illumination at preferred setting.

Side Focus Adjustment located on left side of turret housing
is easily accessible from shooting position. Provides optimal image focus and
parallax removal.



INTERNAL MECHANISM
DESIGN FEATURES

L-Tec™ Zero Stop Prevents elevation turret from dialing
below sight in range using rugged steel components. Internal mechanisms stay
free of sand, dirt, dust, moisture and other foreign materials—even when
setting the zero-stop position.

Maximized Turret Zero Adjustment Turret design allows
expanded adjustment range when L-Tec zero stop feature is disengaged for
zeroing purposes.

Micro Adjust Zero Setting Infinite zero setting positions
allow zero to be set between clicks for optimal accuracy.

Friction Reduction System Heat-treated, hardened-steel pad
floats on the end of the turret screw and interfaces with a hardened steel ring
on the erector tube for steel-on-steel contact. Prevents galling or deformation
of the erector screw contact point for superior durability and

Turret Screws Provides low-friction, wear-resistant
performance: precision-machined from a silicon-brass alloy and treated with an
advanced dry-film lubricant. Turret screw threads are precision machined to
sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System Precision-machined from aircraft grade
aluminum with anti-galling properties for a lighter weight, strong, durable
tube. Stainless Steel offset coil spring erector biasing system withstands much
higher stresses than traditional flat erector springs and al



CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Locking Side Illumination Easily accessible and lockable
illumination dial is located on the left side of turret housing. Features
eleven intensity levels of illumination with off positions between each
setting.



RETICLE





EBR-7C (MRAD)

Packed with useful subtension data for long-range
competition shooting or hunting, the EBR-7C is a hashmarked ranging reticle
available in first focal plane. A windage tree in the lower two quadrants is
perfect for fast follow-up corrections for both wind and elevation. Unique to
the 7C, the numbers on the lower stadia have moved to the outside of the
windage dots for less obstruction around the vertical stadia itself.

Subtension detail for the Razor HD Gen II 3-18×50 riflescope
with EBR-7C MRAD reticle. >
