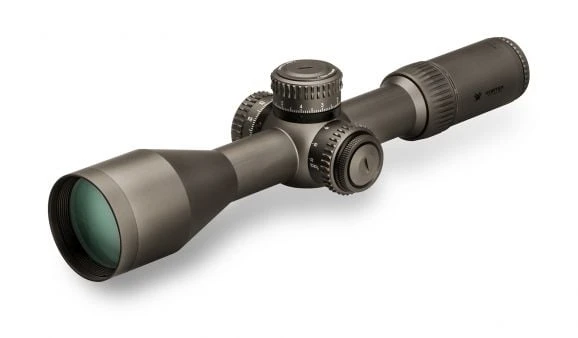

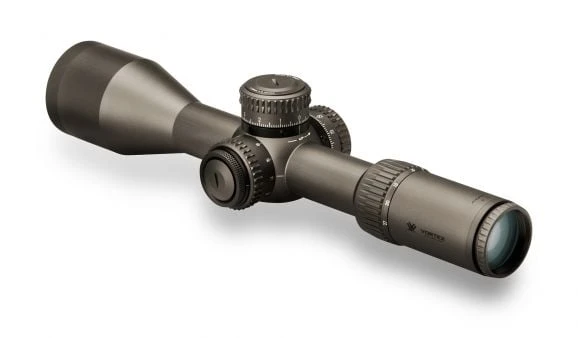

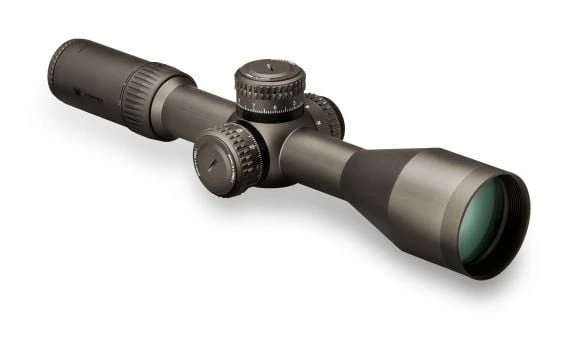

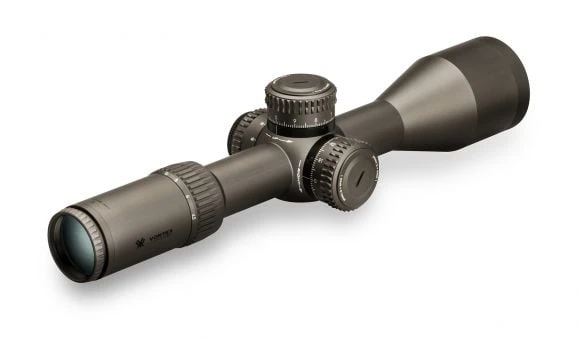

Vortex Razor HD GEN II 4.5-27X56 FFP HORUS H59 Reticle

The new frontrunners in the race for the ultimate precision,
long-range optics, the Gen II Razors, designed and engineered for dialing
precision long-range shots in extreme environments, have serious precision
shooters saying “finally”. The Gen II Razors feature a 6x zoom range,
a 34mm single-piece aircraft-grade aluminum tube and our sophisticated L-Tec
turret system plus a host of additional high-performance features for
state-of-the-art optics with deadly accuracy.



UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED



Razor HD Gen II 4.5-27×56-HORUS H59 Dimensions (in
inches)



Lengths
L1	L2	L3	L4	L5	L6
14.4	2.0	2.2	6.1	4.1	4.1



Heights
H1	H2
2.55	1.81

Dual use for Shooting Tactical / Hunting
US Patent 7,958,665

Included in the Box

• L-Tec
  Tool

• 4-inch
  sunshade

• 2mm
  hex wrench

• CR2032
  battery

• Lens
  cloth

Magnification 4.5-27x

Objective Lens Diameter 56 mm

Eye Relief 3.7 inches

Field of View 25.3-4.4 ft/100 yds

Tube Size 34 mm

Turret Style L-Tec

Adjustment Graduation .1 MRAD

Travel Per Rotation 10 MRAD

Max Elevation Adjustment 28.5 MRAD

Max Windage Adjustment 10 MRAD

Parallax Setting 32 yards to infinity

Length 14.4 inches

Weight 48.5 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download



OPTICAL FEATURES

APO System Index-matched lenses correct color across the
entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and
brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass delivers
the ultimate in resolution and color fidelity, resulting in high-definition
images.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective
coatings on all air-to-glass surfaces provide maximum light transmission for
peak clarity and the pinnacle of low-light performance.

Plasma Tech Cutting edge coating application process
provides unparalleled coating durability and performance

First Focal Plane Reticle Scale of reticle remains in
proportion to the zoomed image. Constant subtensions allow accurate holdover
and ranging at all magnifications.

Glass-Etched Reticle Allows for intricate reticle design.
Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle Provides precise aiming under low-light
conditions



CONSTRUCTION FEATURES

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

L-Tec™ Turrets Integrated locking mechanism prevents
accidental adjustments. Turrets provide fast, accurate, easily read elevation
and windage adjustments. Patent pending.

External Rotation Indicator Provides quick visual and
tactile reference of elevation turret’s rotational position.

Locking Illumination Locks illumination at preferred
setting.

Side Focus Adjustment located on left side of turret housing
is easily accessible from shooting position. Provides optimal image focus and
parallax removal.



INTERNAL MECHANISM
DESIGN FEATURES

L-Tec™ Zero Stop Prevents elevation turret from dialing
below sight in range using rugged steel components. Internal mechanisms stay
free of sand, dirt, dust, moisture and other foreign materials—even when setting
the zero-stop position.

Maximized Turret Zero Adjustment Turret design allows
expanded adjustment range when L-Tec zero stop feature is disengaged for
zeroing purposes. This scope offers 27.5 MRAD total elevation adjustment and 19
MRAD total windage adjustment.

Micro Adjust Zero Setting Infinite zero setting positions
allow zero to be set between clicks for optimal accuracy.

Friction Reduction System Heat-treated, hardened-steel pad
floats on the end of the turret screw and interfaces with a hardened steel ring
on the erector tube for steel-on-steel contact. Prevents galling or deformation
of the erector screw contact point for superior durability and

Turret Screws Provides low-friction, wear-resistant
performance: precision-machined from a silicon-brass alloy and treated with an
advanced dry-film lubricant. Turret screw threads are precision machined to
sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System Precision-machined from aircraft grade
aluminum with anti-galling properties for a lighter weight, strong, durable
tube. Stainless Steel offset coil spring erector biasing system withstands much
higher stresses than traditional flat erector springs and al



CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

L-Tec™ Tool Included with your scope for precise adjustments
to the turret.

Locking Side Illumination Easily accessible and lockable
illumination dial is located on the left side of turret housing. Features
eleven intensity levels of illumination with off positions between each
setting.

RETICLE

HORUS H59

Packed with useful subtension data for long-range
competition shooting or hunting, the Horus™ H59™ is a hashmarked ranging
reticle available in first focal plane.

Subtension
detail for the Razor HD Gen II 4.5-27×56 riflescope with Horus H59 reticle.
